Ultra-Hi Pressure Water Jet Blasting Cleaning Machine Parts 4 Blades Rotary Nozzles
Shenzhen Panwin Machinery&Equipment Co.,Ltd is a hi-tech Hydro Water Jet cleaning machine components manufactures in China, we manufacture the hi-grade wide range of Hydro Jet Blasting parts, including Self-Rotary nozzles, Sapphire nozzles, Universal Valve, Self-Rotating nozzles, Pump Part. Our components is of excellent quality and sell at reasonable price. We adhere to the business philosophy of cooperation and multi-win, treat the highest quality Control as our Vital First-Priority, and strive to create a Pan-win situation for all parties. This Ultra-hi Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles is designed to have big coverage surface cleaning, and it is advantages used in ship surface cleaning.
Inquiry Now

Shenzhen Panwin Machinery&Equipment Co Ltd.

Main Products:

Jixiang Rd Longcheng Street Longgang District Shenzhen China 518172

+86-755-84706259

info@panwinjet.com

1. Product Introduction of Ultra-hi Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles

Ultra-hi-Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles is used for large area surface water blasting cleaning. The rotary nozzle is equipped with four blades and can rotate in 360° mode for greater surface coverage and better cleaning results.



It can be widely used in 40Kpsi cleaning equipment for ship hull large area cleaning to remove marine debris and Species etc.

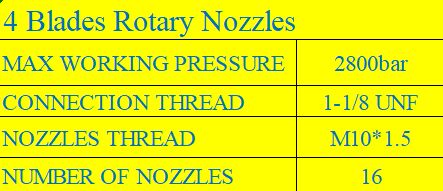

2. Product Parameter of Ultra-hi-Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles

The Ultra-hi-Pressure Water Jet Parts 4 Blades rotary nozzles max working pressure up to 2800ba, and it has 16pcs nozzles big flow rate. it is great big coverage surface cleaning nozzles.



Ultra-hi Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles



3. Product Feature And Application of Ultra-hi-Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles

The Ultra-hi-Pressure Water Jet Parts 4 Blades rotary nozzles biggest features and selling-points is the big coverage and better cleaning results, it can rotate 360degress, with up to 2800bar pressure, it can increase almost 4 times of the general nozzle workload.



Application:

It can be applied to big coverage surface cleaning process like ship surface, Marine cleaning.



4. Product Details of Ultra-hi-Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles

The 4 Blades rotary has totally 16pc nozzles, Max pressure up to 2800bar, it can cover large area of cleaning, increase a lots the surface cleaning efficiency.

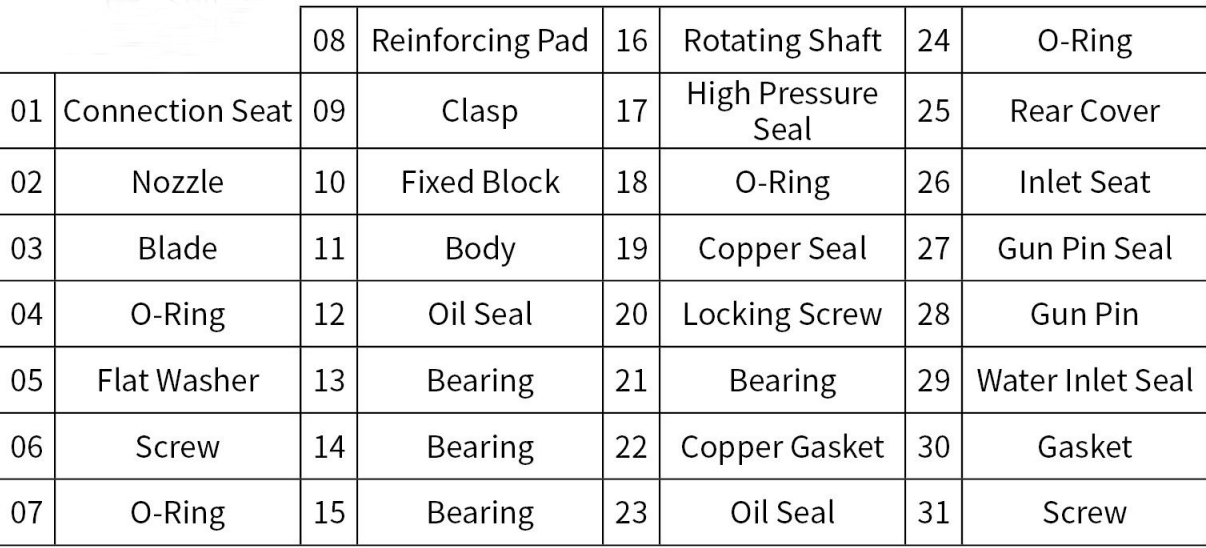

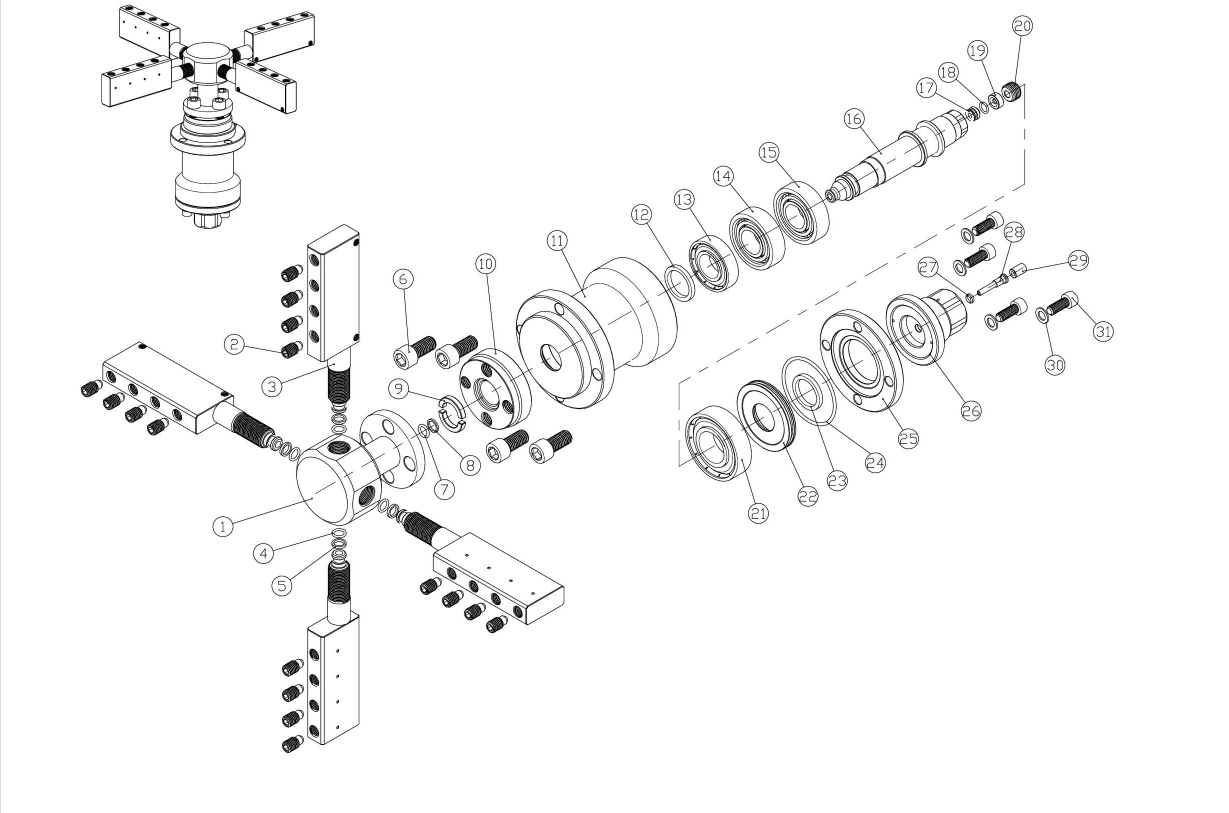

With the details parts list you can see it is advanced design for high efficiency and time-saving.



Ultra-hi Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles



Ultra-hi Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles



5. Deliver, Shipping And Serving of Ultra-hi-Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles

The Ultra-hi-Pressure Water Jet Blasting cleaning machine Parts 4 Blades rotary nozzles is big items, the freight charge no include in the price, and freight charge depend on delivery way, airfreight,ocean shipment, or Railway.



For this 4 Blades rotary nozzles, we will pack with special care in the wooden case, plywood big box to load, and it packed with the pallet for loading and delivery.



The goods in our store are large goods, the freight difference in different regions, the goods do not include freight and wooden frame packaging costs



6. FAQ

1: How often do we need to change the nozzles?

The frequency of replacing the nozzles quite depends on how much time you use your machine. We advise that if you notice a gradual pressure reduction you should check and try to clean the nozzles, and if happen again, you should replace the tip, generally speaking not all tips wear out simultaneously.



2: What kind of shipment will you use?

Goods can be shipped by courier to your warehouse, to air port, or to seaport by ocean. By courier, you could get the samples or goods door to door within 3 to 5 days after delivered. By air, the goods is shipped to your airport and you can get goods within 7 to 10 days after delivered. By ocean, it will take about 15 days to 35 days for the delivery according to different lines, also could send the goods to your appointed site, DDU or DDP term.



7.Product qualification and Patent certificate

Shenzhen Panwin Machinery&Equipment Co.,Ltd are a professional manufacturer specializing Hydro Jet Blasting Cleaning&Cutting machine parts,We strictly controls the whole process of product production according to the quality standard ISO9001-2015 and passed the quality Certificate, Years of experience in the production and design of Ultra-high pressure accessories and machinery,  not only We are winning the trust and long-term cooperation of customers, but also accumulated rich design experience and industry sensitivity for us. We have been expanding and innovate to satisfy the market and customers needs and practical applications.


Shenzhen Panwin Machinery&Equipment Co., Ltd. is a well-established company with the aim of providing efficient and high-quality Ultra-hi-pressure water-jet component&Partss to our worldwide customers for industrial cleaning& cutting. We manufacture a wide range of Ultra-High Pressure Pump Parts, including Self-Rotary nozzles, Sapphire nozzles, Universal Valve, as well as water-jet cutting machine parts, Flow KMT WSI etc. Over Panwin 10 years of professional R&D team dedicated to providing our customer excellent quality parts compete outstanding in the industry.








Innovation mindset:

Unyielding Innovation is the driving-force and direction for an enterprise to continue its healthy development. In the face of fierce industry competition, Innovation is the best way out under the trend of intelligent manufacturing and high-end production  upgrading .

We Panwin teams exert no effort to build the Innovation mindset in every employee. We encourage innovation, reward optimization suggestions of our staff on manufacturing process, production technology, cost reduction, management performance, etc., and continuously improve production efficiency and productivity.







Business Strategy:

We Pan-win adopt Muti-Win business philosophy and all staff fight for this strategy. In intense business competition, we always insist on sharing profit, mutual benefit with customers, employees, investors, suppliers and service providers.

Together we can combine with plenty of resources, encourage innovation actively.Hand-in-hand we can produce better quality high-pressure products continuously.

We are endeavoring to reach yearly financial goal and operational performance targets, guide work with performance&Target. Help customers wholeheartedly, grow and win together with our clients.







Mission Statement:

We take promoting the application and development of hi-Pressure water Jet Blasting cleaning as our mission&responsibility, learn foreign advanced technology, constantly innovate and keep High-quality products as first-priority, promote Ultra-high-pressure Water-Jet cleaning, improve efficiency, and make unremitting efforts to provide our customers with reliable products. Our mission&Vision provides excellent quality Ultra-high pressure water-jet cleaning components and parts and acts as leading water-jet clean industry parts and service provider.
