1. Product Introduction of 40kpsi Pressure Water Jet cleaning machine 4" Bend Pipe Cleaning Nozzle

The 40kpsi pressur water jet cleaning machine 4 "bend pipe cleaning nozzle is a self-rotating nozzle for easy access and cleaning wash bend 90°4 inch pipe, It has front, side, and rear jets that clear blockages. It is powerful pipe cleaning tool for tough tasks in Oil field, chemical pipe cleaning etc.

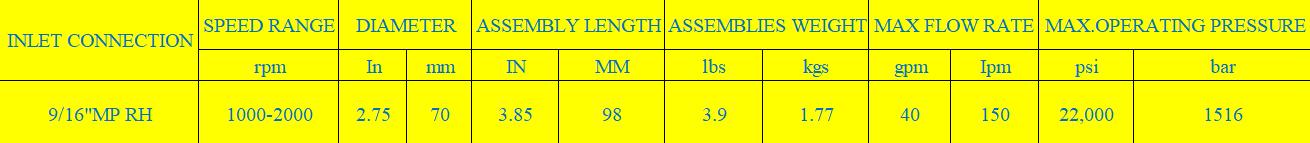

This Tube Water Hydro blasting cleaning machine parts 4in Bend pipe cleaning nozzles have max operating pressure 22000psi, Max Flow rate is 40gpm, it is strong spraying power and big flow rate for the 4’’ bent pipeline cleaning.

We Panwin sell you the excellent quality 20000psi Pressure Water blasting 4inch bend pipeline cleaning machine nozzles have many advantages and features as follows:

1): All-around cleaning performance.

This hydro pipeline cleaning Self-Rotating nozzle is designed for easy access and cleaning wash bend 90° 6 inch pipe, and has front, side, and rear jets that clear blockages. It thrust to propel the tool down the pipe for Max cleaning power and Min wear.

2): Water provide Self-Rotational motion, no oil or ball bearing need.

The flowing Water provides the rotational motion and creates the bearing on which the nozzles spin. No oil or ball bearings to replace!

3): Muti-Port nozzles insert for 360 Degree cleaning.

Equipped with two forward-facing ports at 10° and two at 45°, two radial ports at 100°,and two rearward-facing ports at 135° that accept two types of nozzles available optional.

4): Speed control, powerful cleaning and Min wear.

It is designed with an eddy-current braking system which controls rotation speed for maximum cleaning power and minimum wear.

5): Easy Service.

Completely field repairable in less than 5 minutes!

This 20kpsi Pressure Water Jet cleaning machine 4" Bend Pipeline Cleaning Nozzle can be applied many cleaning process Tank&Vessel Cleaning, pipe and tube cleaning etc, and particularly in the 4inch Bent pipe, it is quite unrivaled advantages.

2. Product Details of 40kpsi Pressure Water Jet cleaning machine 4" Bend Pipe Cleaning Nozzle

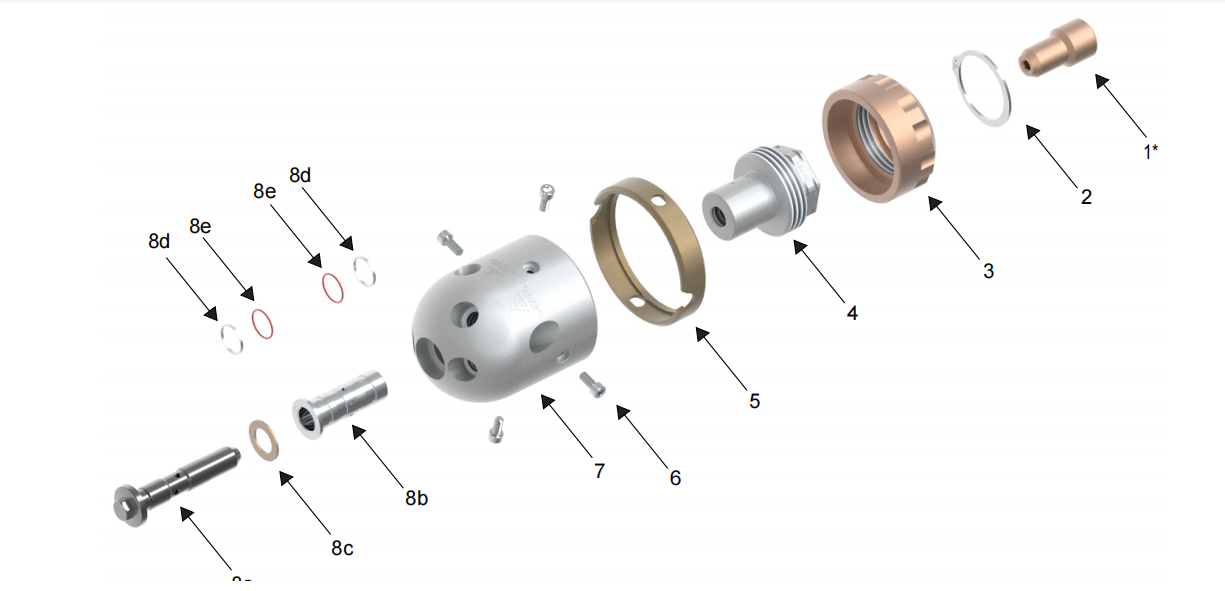

The 20kpsi Pressure Water Jet cleaning machine 4" Bend Pipe Cleaning Nozzle contains adapter, retaining ring,inlet nuts,wear ring and head assemblies etc. As follows:

3. Deliver, Shipping And Serving of 40kpsi Pressure Water Jet cleaning machine 4" Bend Pipe Cleaning Nozzle.

The Pressure Water Jet cleaning machine 4" Bend Pipe Cleaning Nozzle is medium size items, the freight charge no include in the price, and freight charge depend on delivery way, airfreight,ocean shipment, or Railway.

For this 4" Bend Pipe Cleaning Nozzle. we pack with plastic box, big quanity we pack in plywood big box to load, and it packed with the pallet for loading and delivery. the freight is different in different regions, the goods do not include freight and wooden frame packaging costs

4. FAQ

1): In the water Blasting cleaning process,What two factors is more important, pressure(bar) or Flow Volume(LMP)?

The two factors pressures and Flow Volume are both critically important for your optimized best cleaning performance and spray effect, the pressure will determine your spraying power, and the flows Volume take dirt and sediment etc away.

2): How important to keep the nozzles clean?

In the Water Hydro cleaning process, the blocked nozzle will not have good clean effect ,and the clogged nozzles also can increase the backward pressure on the power pump,and cause damage to the pump, so regular clean or even replace nozzles is important.

3): How often do we need to change the nozzles?

The frequency of replacing the nozzles quite depends on how much time you use your machine. We advise that if you notice a gradual pressure reduction you should check and try to clean the nozzles, and if happen again, you should replace the tip, generally speaking not all tips wear out simultaneously.

5.Product qualification and Patent certificate

Shenzhen Panwin Machinery&Equipment Co.,Ltd are a professional manufacturer specializing Hydro Jet Blasting Cleaning&Cutting machine parts,We strictly controls the whole process of product production according to the quality standard ISO9001-2015 and passed the quality Certificate, Years of experience in the production and design of Ultra-high pressure accessories and machinery,  not only We are winning the trust and long-term cooperation of customers, but also accumulated rich design experience and industry sensitivity for us. We have been expanding and innovate to satisfy the market and customers needs and practical applications.
