1. The Introduction of The Clean Room Air Shower And Transfer Window

The air shower transfer window is designed according to the form of the air shower room. The fan quickly blows the air out through the high-efficiency filter into clean air. The clean air passes through the stainless steel nozzle. After the nozzle is ejected, the airflow speed is as high as 20M/S. For the dust particles attached, the basic blowing time can be adjusted according to the manual switch.

2. The Characteristics of The Clean Room Air Shower And Transfer Window

1). Electronic/mechanical interlock device, only one of the doors can be opened at the same time.

2). Air shower transfer window with 4 multi-angle adjustable nozzles, top blowing shower, with a large air volume, low noise fan, voltage: 380V, 50HZ, wind speed greater than 25m/s

3). Equipped with high-efficiency filter, the filtration efficiency is 99.99%@0.5um, to ensure the purification level

4). Fully automatic infrared induction blowing shower. When entering the clean area from the entrance, it will automatically blow the shower after infrared induction. When going out from the clean area, it will not blow through the transfer window to save energy.

5). Install a pick-up indicator on the entry and exit direction panels

3. The Feature of The Clean Room Air Shower And Transfer Window

1). Optional UV germicidal lamp, walkie-talkie, roller

2). Mechanical interlock or electronic interlock, reliable performance

4. The Material of The Clean Room Air Shower And Transfer Window

1). The outer wall is cold plate with white spray, the inner wall and top plate are stainless steel

2). The material of the box is all stainless steel, 201 and 304 stainless steel are optional

5. The Parameter of The Clean Room Air Shower And Transfer Window

6. The Product Details of The Clean Room Air Shower And Transfer Window

7. The Working Principles of The Clean Room Air Shower And Transfer Window

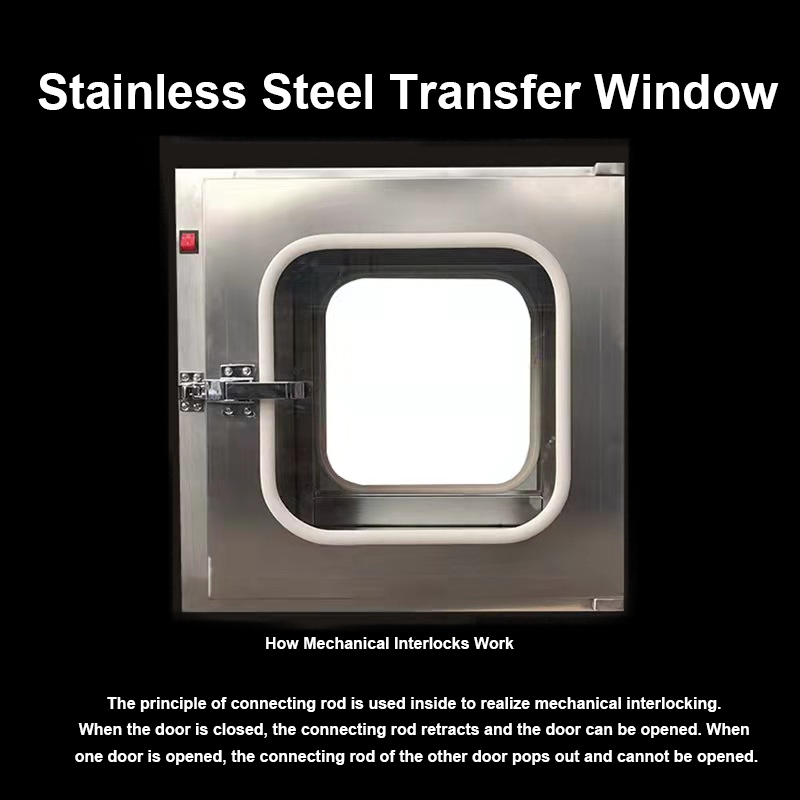

1). Mechanical interlocking device: The internal use of mechanical form to achieve interlocking, when one door is opened, the other door cannot be opened, and the other door must be closed before the other door can be opened.

2). Electronic interlocking device: the internal use of integrated circuits, electromagnetic locks, control panels, indicator lights, etc. to achieve interlocking, when one door is opened, the door indicator light of the other door does not light up, indicating that the door cannot be opened, At the same time, the electromagnetic lock action realizes interlocking. When the door is closed, the electromagnetic lock of the other door starts to work, and the indicator light will light up, indicating that the other door can be opened.

8. The Use of The Clean Room Air Shower And Transfer Window

The transfer window is managed according to the cleanliness of the higher-level clean area connected to it. For example, the transfer window connected between the coding room and the filling room should be managed according to the requirements of the filling room. After get off work, the operator in the clean area is responsible for wiping the internal surfaces of the transfer window clean, and turning on the ultraviolet sterilization lamp for 30 minutes.

1). The material entering and leaving the clean area must be strictly separated from the flow channel, and the material enters and exits through the special channel of the production workshop.

2) When the materials enter, the raw and auxiliary materials will be unpacked by the person in charge of the preparation class or the surface will be cleaned, and then sent to the temporary storage room of raw materials and auxiliary materials in the workshop through the transfer window; and sent to the in-package room through the transfer window. The workshop integrator handles the material handover with the person in charge of the preparation and internal packaging processes.

3). When passing through the transfer window, the regulations of “one opening and one closing” for the inner and outer doors of the transfer window must be strictly implemented, and the two doors cannot be opened at the same time. Open the outer door and put the material in, then close the door first, then open the inner door to take out the material, close the door, and so on.

4). When the material in the clean area is sent out, the material should be transported to the relevant material intermediate station first, and the material should be moved out of the clean area according to the reverse procedure when the material entered.

5). All semi-finished products shipped from the clean area must be sent from the transfer window to the outer temporary storage room, and then transferred to the outer packaging room through the logistics channel.

6). Materials and wastes that are very likely to cause pollution should be transported from their dedicated transfer windows to non-clean areas.

7). After the material is in and out, the site of each clearing room or intermediate station and the sanitation of the transfer window should be cleaned up in time, the inner and outer access doors of the transfer window should be closed, and the cleaning and disinfection work should be done well.

9. The Installation of The Clean Room Air Shower And Transfer Window

Choose a convenient location on the wall, and then open the hole. The hole is generally about 10MM larger than the outer diameter of the transmission window. Put the transmission window into the wall, generally install it in the middle of the wall, keep it balanced and fixed, and decorate it with rounded corners or other decorative strips. The gap between the transmission window and the wall can be sealed and decorated with glue.

10. The Introduction of The Dong Guan Zhuo Wei Air Purification Technology Co., Ltd.

Dongguan Zhuowei Air Conditioning Electromechanical Equipment Co., Ltd. is a large-scale and productive air cleaning equipment manufacturer in South China. The company is located in Dongguan, the central city on the east bank of the Pearl River Delta. The factory covers an area of ​​2,000 square meters. The company was established in 2009. It is mainly engaged in the research and development, manufacture and sales of clean room purification equipment. , high-efficiency filters, high-efficiency air outlets, transfer windows, clean workbenches, clean sheds, FFU air purification units and other purification equipment, complete varieties, to undertake precision machinery, laboratories, biomedicine, food processing, electronics, circuit boards, optoelectronics, Supply and installation, debugging, testing and other one-stop services of purification equipment and consumables in the fields of optics, aerospace, circuit boards, and cosmetics.

Dongguan Zhuowei Air Conditioning Electromechanical Equipment Co., Ltd. produces in strict accordance with ISO9001 and ISO14001 product quality and environmental standards to ensure the required performance. Strict quality inspection procedures, from raw materials to finished product delivery, are strictly inspected to control product quality and ensure that products are qualified.

We always adhere to the corporate tenet of "survive by quality, seek market by reputation, seek development by technology, and seek benefit by management", adhering to the business philosophy of "creating first-class quality products and building Huaye's image", and constantly integrating product manufacturing and engineering and A professional and group business model integrating design and installation. We wholeheartedly provide you with high-efficiency, high-quality, high-rated construction management engineering services, and sincerely create a first-class clean space for you.

11. The Purchase Notes of The Clean Room Air Shower And Transfer Window

12. FAQ:

Q1: What is you minimum order quantities?

A :Our MOQ is one set which can meet your sample requirement.

Q2: What is your leading time.

A :It’s based on your quantities and the sizes of the products.Generally it takes us 20 days for one container and 10 days for sample orders.

Q3: What is your payment terms?

A :30% by T/T as deposit, balance will be payed before delivery.

Q4: Do you accept OEM&ODM?

A: Yes

Q5: Why maxi?

1). 2 years warranty time guarantee

2). 24 hours to give you prompt and further information

3). Send invitation and arrange everything for you when you come to China
