1. The Introduction of The 4384 Silicone Sheathed Wire

4384 Silicone sheathed wire is a kind of cable made of silicone rubber raw material combined with environmentally friendly pure copper wire. It has excellent high temperature resistance and low temperature esistance performance, excellent high pressure resistance, aging resistance, high temperature resistance, acid and alkali resistance, and long service life. Colors can be customized according to your requirements. Both the rubber compound and the copper wire passed the SGS test report.

4384 Silicone sheathed wire (coil guards, wire protectors, wire guards, wire guides) are protective accessories for connecting wires such as wires and cables, mainly to protect electrical and communication wires when they pass through openings and turns. It will not be damaged by pulling, squeezing and friction, resulting in energy and signal interruption. The industrial name of the silicone wire is AGR silicone rubber wire, which is made of silicone material, and the suitable temperature range is -60°-200°. Voltage: 300/500V +Silicone.

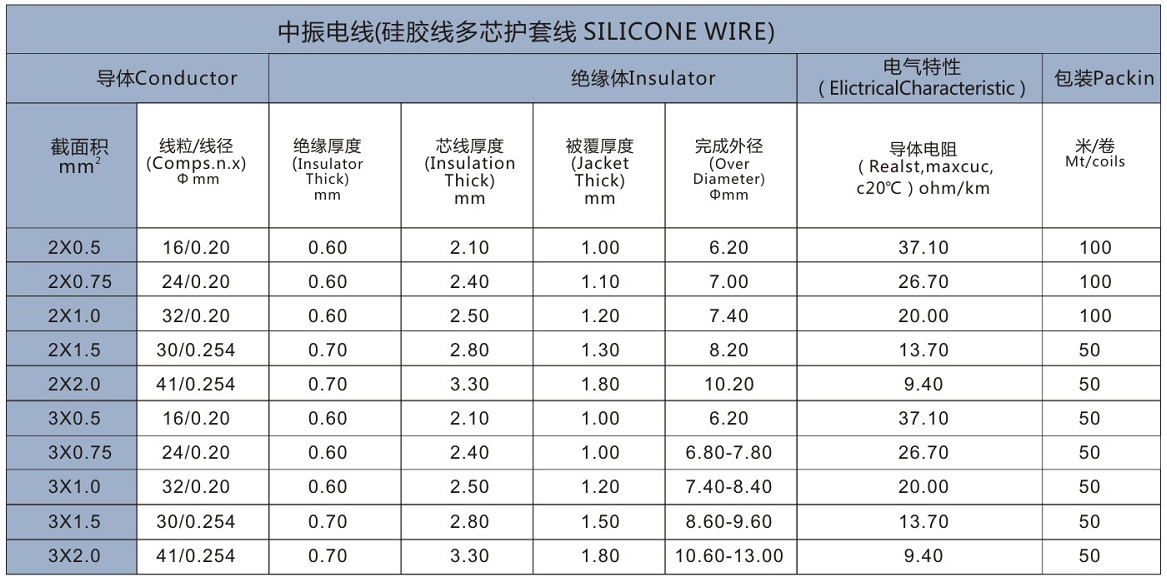

2. The Parameter of The 4384 Silicone Sheathed Wire

3. The Features of The 4384 Silicone Sheathed Wire

●Nominal voltage : 450V

●Temperature Range : - 60°C~+ 150°C/200°C

●Tolerance :土0.05-0.1MM

●Conductor :Tinned Copper

●Insulator :Silicone

●Colours :Red- Black-White- Brown- Yellow-Green-Yellow/Green-Transparent

4. The Application of The 4384 Silicone Sheathed Wire

The 4384 silicone sheathed wire is applicable to a variety of household appliances, LED lighting, electronic equipment, automation, robots and other lead-out cables. In view of the reason of the line pipe used for home decoration, three copper wires are generally laid through the line pipe, that is, the neutral wire, the live wire, and the ground wire. Because the grommet is more complete than the ordinary wire, for the sake of safety, it is now more used in the home decoration of the home. The advantage of the grommet is that it can save the threading pipe and then fix it in the wall. The outer sheath insulation is convenient and fast, and the appearance is beautiful and generous. More importantly, it is safe to use. It can be used to connect household mobile panels, refrigerators Or household appliances such as air conditioners.

Applications:

Company Profile:

Certificates:

Packing & Delivery:

5. The Features of The 4384 Silicone Sheathed Wire

4384 silicone sheathed wire has good anti-acid, anti-alkali, anti-fungal properties, can withstand hot and humid environment and a variety of grease, while the cable flexibility performance is good, with waterproof, pressure and other advantages.

(a) U0/U is 450/750V.

(b) The laying temperature of the cable should not be lower than 0℃

(c) When laying the cable, it is recommended to allow the bending radius; the cable without armor should not be less than 6 times the outer diameter of the cable, and the armored cable should not be less than 12 times the outer diameter of the cable.

6. The Advantages of The Sheathed Wire

Due to the decoration of the home, the line pipe is generally used, and then three copper wires (fire wire, neutral wire, ground wire) are laid through the wire pipe. But sheathed wires are much safer than ordinary wires, so they are still more useful in home decoration in the construction field. The sheathed wire is the power cord used in the past. In the past, home decoration used the sheathed wire as the lighting and power cord; it can be directly buried in the wall or fixed on the wall.

The advantage of it is that it can save the threading pipe or threading groove, and is replaced by a layer of sheath insulation on the outside. It is convenient and fast to install, looks good, and is safe to use. It is the best choice for connecting household mobile plugboards, refrigerators or air conditioners and other electrical appliances.

7. FAQ

Q1: Are you a factory or a trading company?

A: We are a 13-year-old factory with more than 20 engineers and a supplier evaluation.

Q2: Where is your factory? How can I visit there?

A: Our factory is located in PR City, Guangdong Province, China. You can fly directly to Guangzhou or Shenzhen airport. Warmly welcome customers at home and abroad to visit us!

Q3: What is the MOQ?

A: 1000M, the wire will be cut according to the length you need and packaged according to your requirements.

Q4: How can I check your quality?

A: After the price is confirmed, you can ask for samples to check our quality. Samples are free, but need to pay for shipping.
