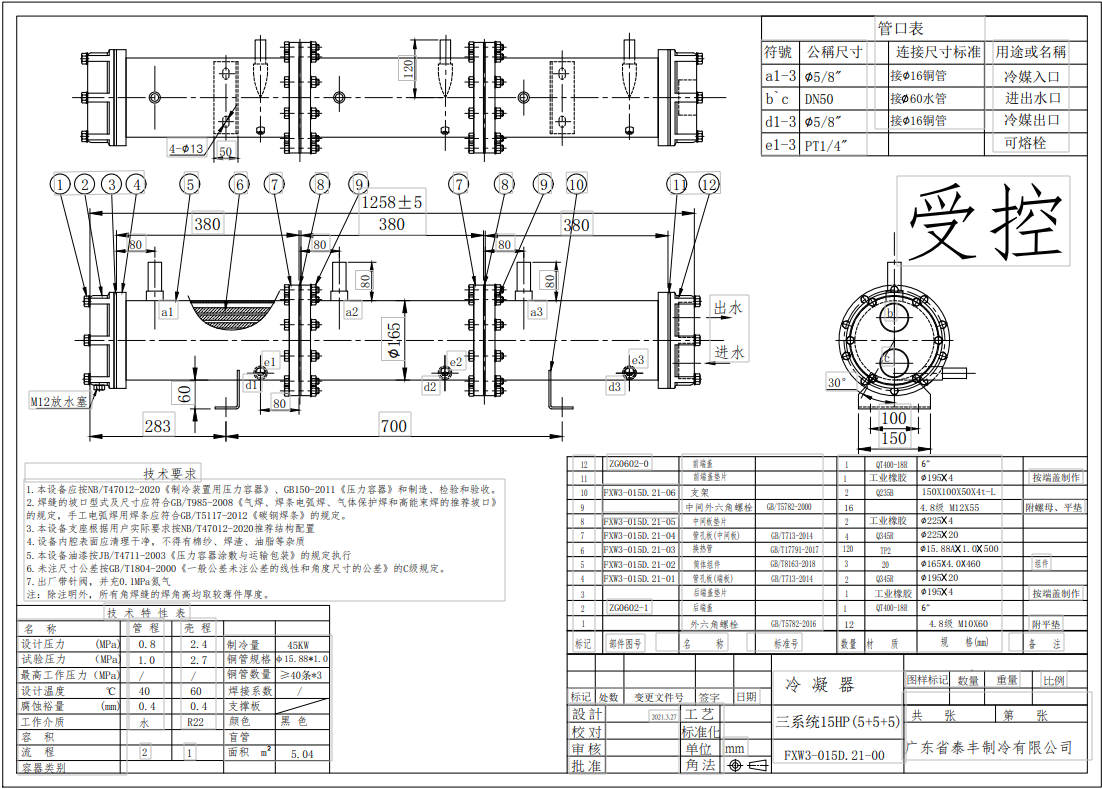

1.CAD Diagram of Three-system Shell and Tube Condenser

3.Product Features of Three-system Shell and Tube Condenser

Our condensers are suitable for R22, R134a, R407c, etc. The suitable refrigerant carriers are treated tap water, well water, river water, sea water, salt water solution, glycol aqueous solution and other industrial process low temperature refrigerant carriers, and the size and type of heat exchanger tubes are different according to the different working conditions and different working qualities. The tubes are mainly made of copper, aluminium brass, copper-nickel alloy, etc.

1). Heat exchanger tube form

(1)φ9.52mm male threaded purple copper tube, mainly used for U-tube dry condensers.

(2)φ12.7mm, φ15.88mm male threaded purple copper tube for straight tube dry condenser.

(3)φ19mm full liquid condenser tube for full liquid condenser.

2). Housing material

(1)20# seamless steel pipe (internal spraying of epoxy-type anti-corrosion coating and anti-seawater corrosion coating).

(2)Stainless Steel Tubes

3). Several designs for you to choose from

(1) The chilled water inlet and outlet interfaces are in the form of threaded, flange and clamp connections.

(2) The import and export of the working mass has copper pipe brazed type, loose-fitting flange connection, tongue and groove flange connection and overall flange connection.

(3) The upper part of the shell is equipped with a venting port, the lower part with a drainage port, and the water port is equipped with a temperature-sensitive connector seat (the number can be according to customer requirements), a water flow switch connector seat, antifreeze opening and unfreezing connector and temperature measurement port. The main connection methods are internal thread and blind pipe.

(4) In some heat pump type evaporator or ice storage evaporator can be added with safety devices.

4) .Industrial process water carrier coolant use

Calcium chloride, sodium chloride, glycol solution and other low-temperature refrigerant carrier evaporators require tube plate, shell anti-corrosion and heat exchanger tube material selection, design requirements, etc. are also different. Our company has unique design experience in this area.

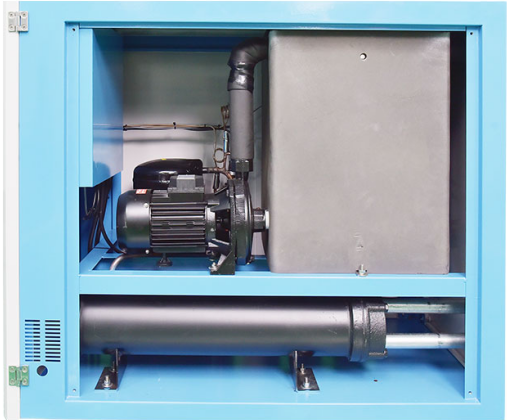

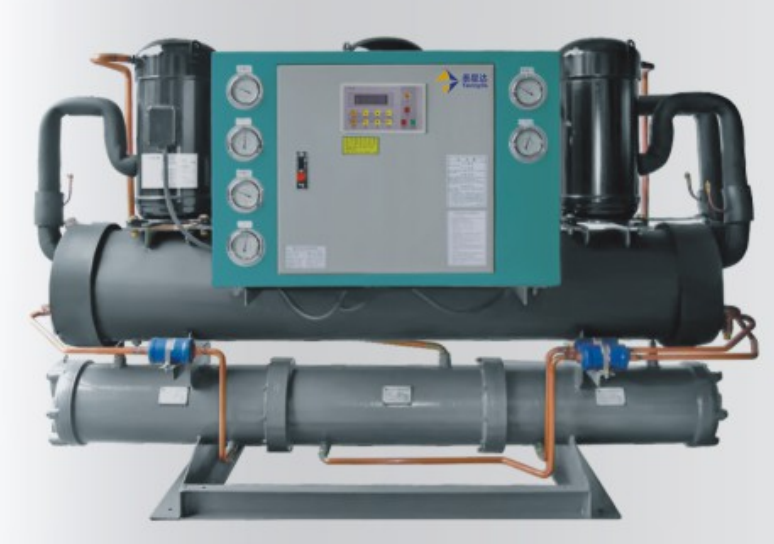

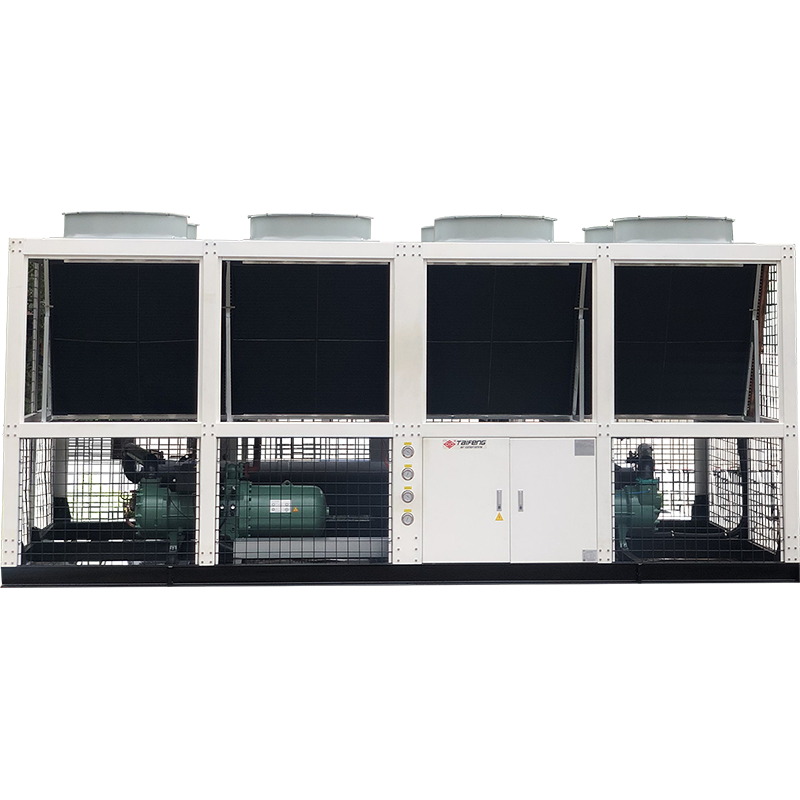

4.Product Case Diagram of Three-system Shell and Tube Condenser
