1. The Introduction of The 11AWG Extra Soft Silicone Wire

The extra soft silicone wire is very soft, but the silicon-oxygen bond energy is much higher than the carbon bond in other rubbers, so it is superior in heat resistance and cold resistance. The mechanical properties of silicone rubber are poor at room temperature, but when it is above 150, the mechanical properties exceed other rubbers. The electrical properties of silicone rubber change little with temperature and frequency, and have good arc resistance; good thermal conductivity

11AWG extra soft silicone wire is a kind of cable made of silicone rubber raw material combined with environmentally friendly pure copper wire. The temperature resistance range is - 110°C- 200°C, and the color can be customized according to your requirements. Both the rubber compound and the copper wire passed the SGS test report.

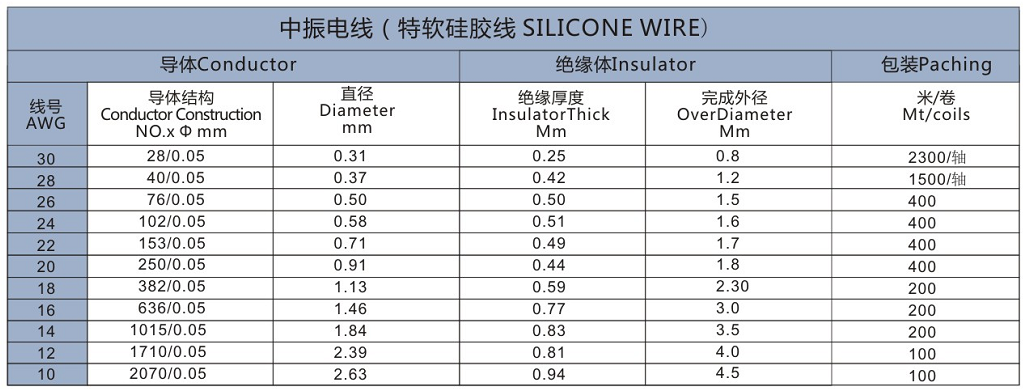

2. The Parameter of The 11AWG Extra Soft Silicone Wire

●Nominal voltage : 1100V

●Temperature Range : -110°C~+ 200°C

●OD.Tolerance : +0.05-0.1MM

●Conductor :Tinned Copper

●Insulator :Silicone

●Flame Retardant Grade: FT2/VW-1

●Colours :Red-Black-White-Brown-Yellow-Green-Yellow/Green

3. The Application of The 11AWG Extra Soft Silicone Wire

11AWG Extra Soft Silicone Wire is suitable for a variety of household appliances, LED lighting, electronic equipment, lithium batteries, model aircraft, robots, automotive wiring harnesses and other lead-out connecting lines.

4. How To Choose Extra Soft Silicone Wire

When choosing the extra soft silicone wire, the heat generated by the loss of each part of the electronic wire should be considered, and the temperature of the electronic wire will not exceed its allowable temperature. In most cases, the transmission capacity of an electronic cable is determined by its allowable temperature. The allowable temperature of electronic cables mainly depends on the thermal aging properties of the insulating materials used. If the working temperature of the electronic cable is too high, the insulating material will accelerate the aging, and the life of the electronic cable will be greatly shortened. If the electronic cable runs at the allowable temperature, the electronic cable can work safely for a long time.

5. The Features of The 11AWG Extra Soft Silicone Wire

Among the products of ultra-soft silicone wire, UL certified electronic wire occupies a relatively large proportion in the market, and the main types are distinguished by material, such as PVC, XLPE, TPEE-113D, PP, silicone rubber and so on. When purchasing electronic wires, select the corresponding electronic wire types according to different usage requirements.

6. The Certification of The 11AWG Extra Soft Silicone Wire

7. The Introduction of The Dongguan Zhongzhen New Energy Technology Co., Ltd.

Buy 11AWG Extra Soft Silicone Wire from China ZHONGZHEN NEW ENERGY factory. Top quality, great selection and expert advice are our characteristics. You can rest assured to buy the 11AWG Extra Soft Silicone Wire from our factory, and we will offer you the best after-sale service and timely delivery .Our 11AWG Extra Soft Silicone Wire support wholesale customization, provide free samples, cheap price, large quantity discount more, this is the latest product, fashionable, 11AWG Extra Soft Silicone Wire is of good quality, durable, made in China. We also provide product price list, welcome to contact us for more information.

8. FAQ

Q1: Are you a factory or trading company?

A: We are a 13years factory with more than 20 engineers and have gained the supplier assessment.

Q2: Where is your factory located? How can I visit there?

A: Our factory is located in Gongguan City, Guangdng Province, China,.You can fly to Guangzhou or Shenzhen airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: What's the MOQ?

A: 1000M,The wire will be cut in the length you need, and pack it based on your requirement.

Q4: How can I check your quality?

A: After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

Hot tags: 11AWG Extra Soft Silicone Wire, Manufacturers, Suppliers, Factory, Wholesale, Customized, Quality, Buy, In Stock, Free Sample, China, Made in China, brands, cheap, discount, price, Price list, quotation, low price, buy discount, fashion, newest, high quality, advanced, durable, easy-maintainable, latest selling, 1 years warranty, classy, fancy

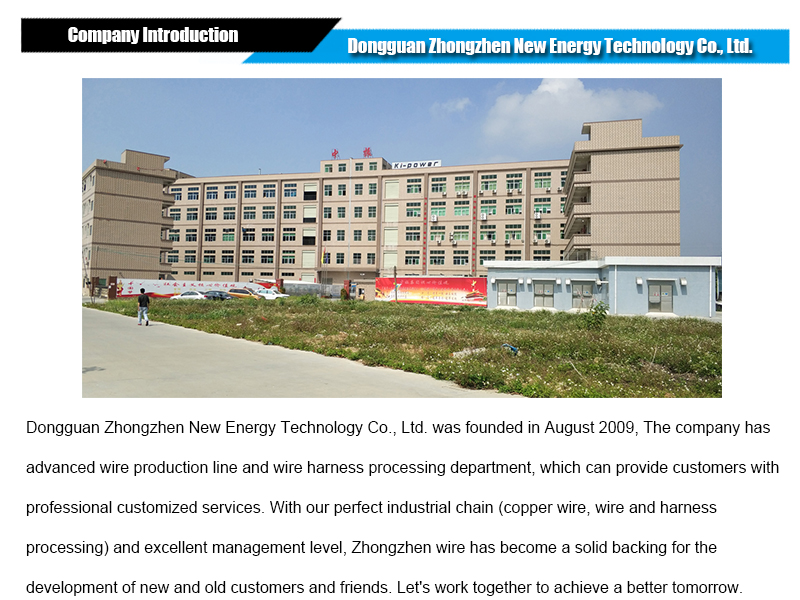

Dongguan Zhongzhen New Energy Technology Co, Ltd was founded in August 2009. The company has advanced wire production line and wire harness processing department, which can provide customers with professional customized services. With our perfect industrial chain (copper wire, wire and harness processing) and excellent management level, Zhongzhen wire has become a solid backing for the development of new and old customers and friends. Let's work together to achieve a better tomorrow. Our company is a high-tech enterprise integrating R & D, production, processing and sales.
